Universal Alloy – Ball Ground, GA

Project Description

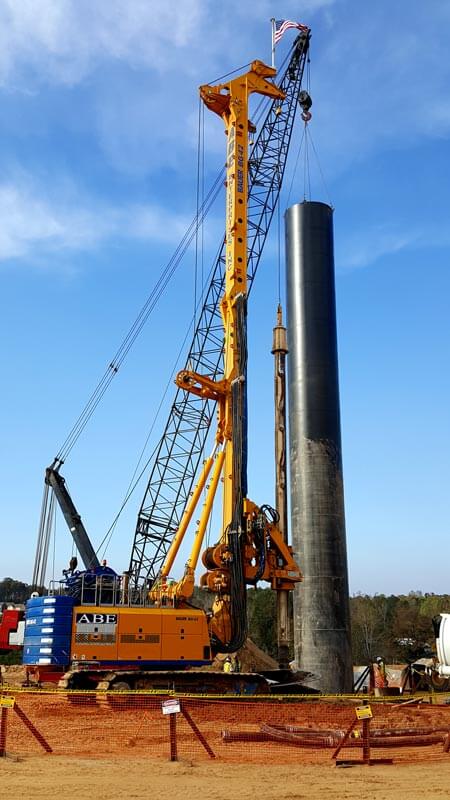

ABE constructed 3 large diameter (120 inch diameter) Vertical Heat Treat pits measuring 85 foot deep each. ABE installed full depth permanent steel liners/casing in each shaft with diameters of 84 –inches to 108 inches weighing up to 70,000 lbs each. The steel liners were concreted in place around the outside and bottom plates were welded at the base of each shaft to provide a sealed water tight condition. The approach to drill the shafts using large diameter tooling was done as a Value Engineering option to replace traditional beam and lagging shoring with internal bracing which would have been more costly and much slower.

Project Details

Date Completed Winter 2016
Skills Permanent Shoring Wall, Soil Nail Wall, Soldier Pile Wall, Tiebacks, Retaining Wall, Permanent Soldier Pile Wall, Retaining Wall, Beam Wall, Lagging wall
